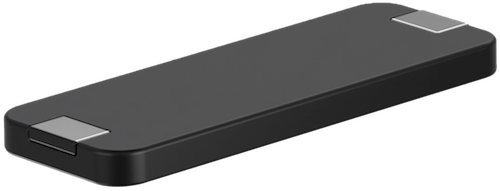

Ultra-low profile and Ultra-large current Co-fired power inductor-HTF series

Overview

innovative copper magnetic Co-fired technology, which can achieve higher characteristics in the same size or achieve equivalent performance in smaller sizes compared to similar products. It has ultra-low loss, ultra-large current, and has the ability to be much thinner in the overall dimension design. Its unique copper magnetic co-firing process ensures excellent heat dissipation characteristics and high reliability. Due to the advanced production process, it has the advantages of both molded and assembled power inductors, it can be used to produce small size but large current inductors and large size meanwhile large current ultra-thin inductors. Regarding the application, it can support single coil DC-DC power supply and coupling inductor for multi-phase power supply applications.

It is especially suitable for some ultra-thin high-power applications, as well as scenarios with high requirements for heat dissipation and reliability. Its unique advantages are incomparable to those of molded inductors and assembled inductors.

Application:

 The CPU power supply in high-end PC, Pad and other applications uses ultra-thin features to improve the equipment cooling system.

 The CPU, GPU and related circuits in servers, AI servers and other high current and ultra-thin applications for the power supply. The ultra-thin high current can deal with the VRM and TLVR power supply scheme, and reduce the board area through back PCB mounting.

Background

Small size, big trust.

With the trending of low profile for AI servers, high-end PCs, Pads, mobile phones and other products, as well as the inherent requirements of high power. It has a huge impact on the size and power consumption of internal components.   Meanwhile, the DC-DC circuit, as the power supply, subjected to the market request, needs to achieve ultra-low profile while maintaining high power. Which, of course, depending on direct current flow capacity of the power inductor. The ultra-thin ultra-large current copper magnetic Co-fired power inductor came out at the historic moment.

At the same time, accompany with high reliability, high heat dissipation capacity and low loss are also deemed to become the highlights of copper magnetic Co-fired inductor.
